STP200N3LL

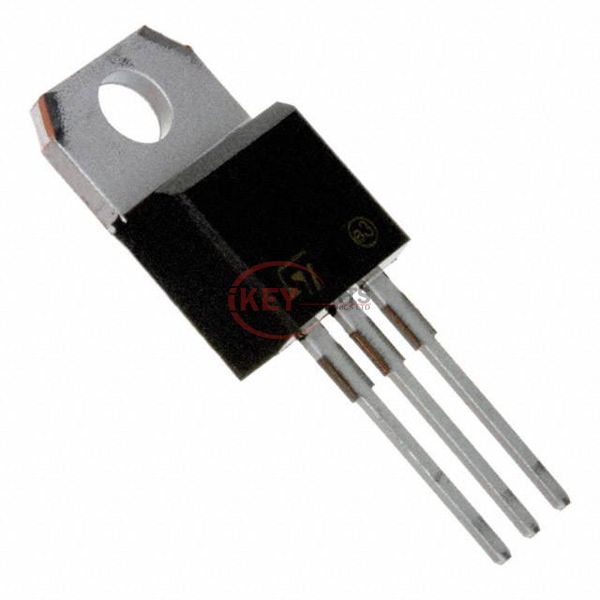

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STP200N3LL

Manufacturer :
STMicroelectronics
Mfr. Part # :
STP200N3LL
Description
MOSFET N-CH 30V 120A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STP200N3LL PDF
STP200N3LL Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 60A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs53 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5200 pF @ 25 V
FET Feature-
Power Dissipation (Max)176.5W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220
Package / CaseTO-220-3
Request Quote Now
Request Quote Now

We can supply STP200N3LL, use the request quote form to request STP200N3LL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STP200N3LL. The price and lead time for STP200N3LL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STP200N3LL. We look forward to working with you to establish long-term relations of cooperation.
