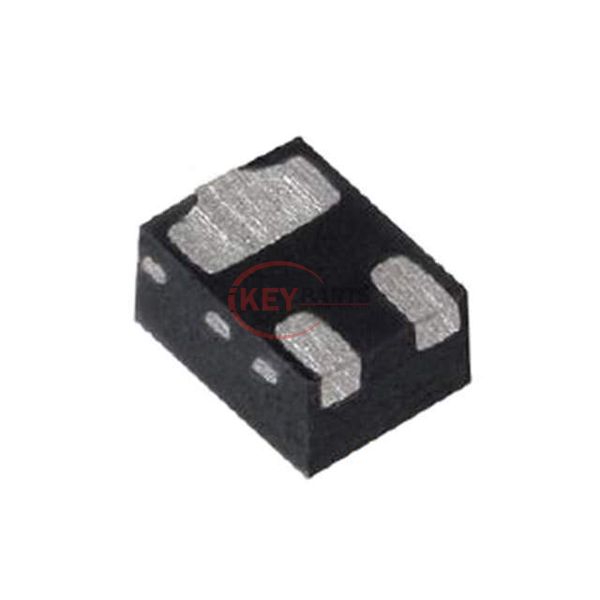

SIUD403ED-T1-GE3

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIUD403ED-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIUD403ED-T1-GE3
Description
MOSFET P-CH 20V 500MA PPAK 0806
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIUD403ED-T1-GE3 PDF
In Stock
1621
SIUD403ED-T1-GE3 Tech Specifications
SeriesTrenchFET® Gen III
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs1.25Ohm @ 300mA, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs1 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds31 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.25W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 0806
Package / CasePowerPAK® 0806
Request Quote Now
Request Quote Now

We can supply SIUD403ED-T1-GE3, use the request quote form to request SIUD403ED-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIUD403ED-T1-GE3. The price and lead time for SIUD403ED-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIUD403ED-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
