RD3G07BATTL1

Enlarger

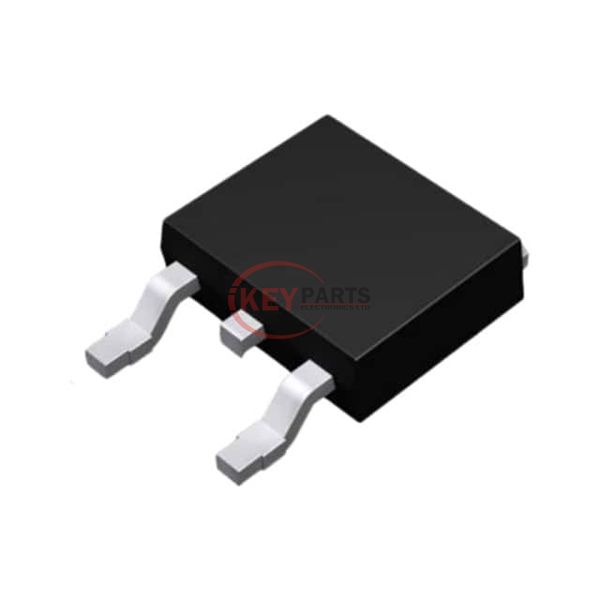

Lmages are for reference only See Product Specitications

ROHM Semiconductor RD3G07BATTL1

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RD3G07BATTL1
Description
PCH -40V -70A POWER MOSFET - RD3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RD3G07BATTL1 PDF
RD3G07BATTL1 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C70A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.1mOhm @ 70A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs105 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5550 pF @ 20 V
FET Feature-
Power Dissipation (Max)101W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Request Quote Now
Request Quote Now

We can supply RD3G07BATTL1, use the request quote form to request RD3G07BATTL1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RD3G07BATTL1. The price and lead time for RD3G07BATTL1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RD3G07BATTL1. We look forward to working with you to establish long-term relations of cooperation.
