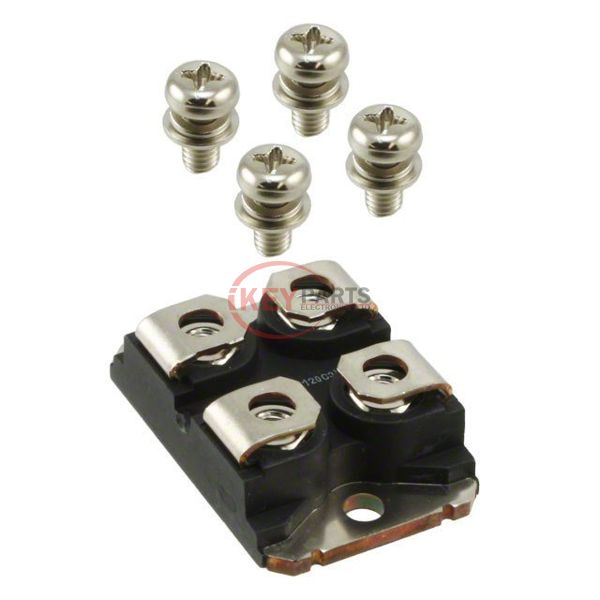

IXGN80N60A2D1

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXGN80N60A2D1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXGN80N60A2D1
Description
IGBT MOD 600V 160A 625W SOT227B
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXGN80N60A2D1 PDF
In Stock
580
IXGN80N60A2D1 Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)160 A
Power - Max625 W
Vce(on) (Max) @ Vge, Ic1.35V @ 15V, 80A
Current - Collector Cutoff (Max)650 µA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
Request Quote Now
Request Quote Now

We can supply IXGN80N60A2D1, use the request quote form to request IXGN80N60A2D1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXGN80N60A2D1. The price and lead time for IXGN80N60A2D1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXGN80N60A2D1. We look forward to working with you to establish long-term relations of cooperation.
