FS50R12U1T4BPSA1

Enlarger

Lmages are for reference only See Product Specitications

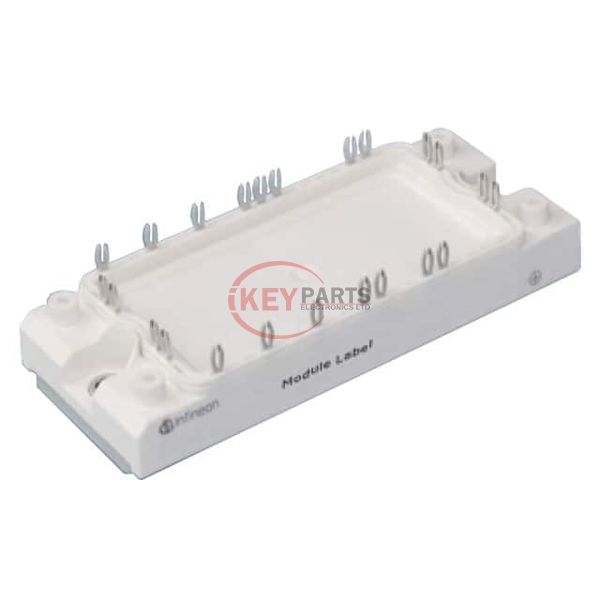

IR (Infineon Technologies) FS50R12U1T4BPSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
FS50R12U1T4BPSA1
Description
IGBT MOD 1200V 90A 250W
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FS50R12U1T4BPSA1 PDF
FS50R12U1T4BPSA1 Tech Specifications
Series-
PackageTray
Part StatusObsolete
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)90 A
Power - Max250 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 50A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce100 pF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
Request Quote Now
Request Quote Now

We can supply FS50R12U1T4BPSA1, use the request quote form to request FS50R12U1T4BPSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FS50R12U1T4BPSA1. The price and lead time for FS50R12U1T4BPSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FS50R12U1T4BPSA1. We look forward to working with you to establish long-term relations of cooperation.
