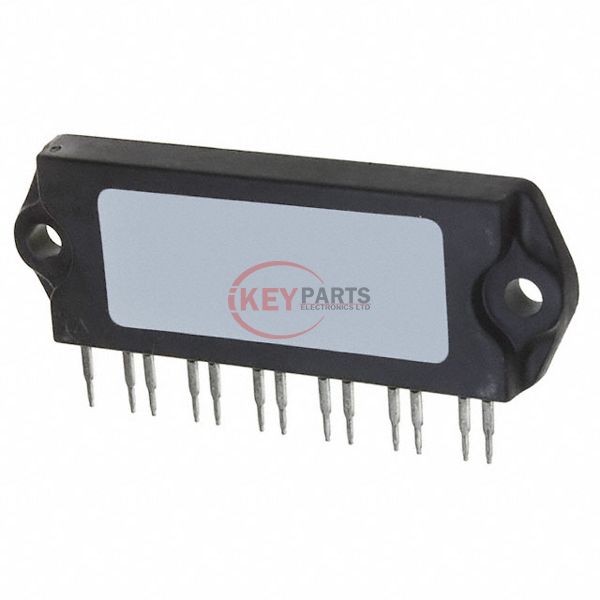

CPV364M4F

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division CPV364M4F

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
CPV364M4F
Description
IGBT MODULE 600V 27A 63W IMS-2
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CPV364M4F PDF
CPV364M4F Tech Specifications
Series-
Package-
Part StatusObsolete
IGBT Type-
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)27 A
Power - Max63 W
Vce(on) (Max) @ Vge, Ic1.6V @ 15V, 27A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce2.2 nF @ 30 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case19-SIP (13 Leads), IMS-2
Supplier Device PackageIMS-2
Request Quote Now
Request Quote Now

We can supply CPV364M4F, use the request quote form to request CPV364M4F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CPV364M4F. The price and lead time for CPV364M4F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CPV364M4F. We look forward to working with you to establish long-term relations of cooperation.
