CM150DUS-12F

Enlarger

Lmages are for reference only See Product Specitications

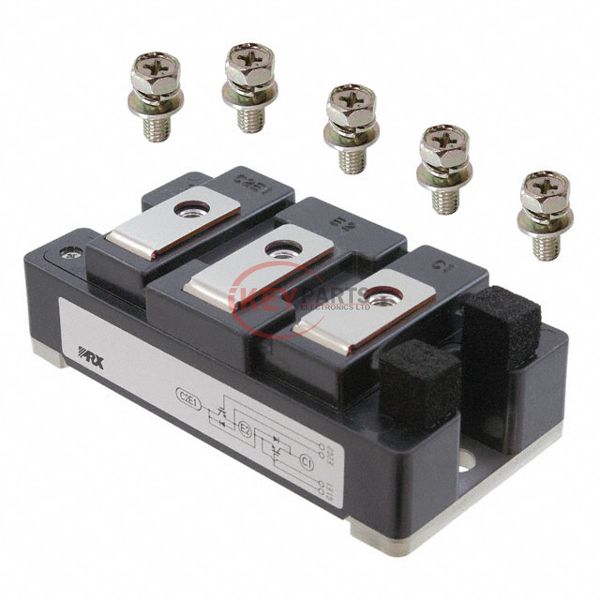

Powerex, Inc. CM150DUS-12F

Manufacturer :
Powerex, Inc.
Mfr. Part # :
CM150DUS-12F
Description
IGBT MOD 600V 150A 520W
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CM150DUS-12F PDF
CM150DUS-12F Tech Specifications
SeriesIGBTMOD™
PackageBulk
Part StatusDiscontinued at Digi-Key
IGBT TypeTrench
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)150 A
Power - Max520 W
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 150A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce41 nF @ 10 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
Request Quote Now
Request Quote Now

We can supply CM150DUS-12F, use the request quote form to request CM150DUS-12F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CM150DUS-12F. The price and lead time for CM150DUS-12F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CM150DUS-12F. We look forward to working with you to establish long-term relations of cooperation.
