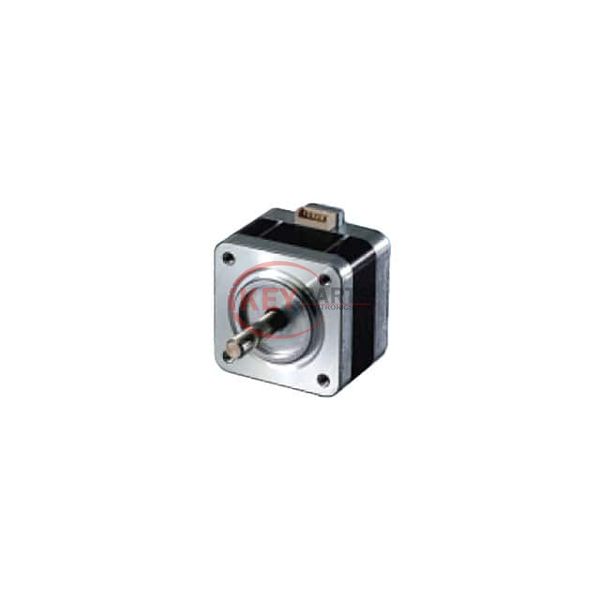

Series | 14PM | |
Package | Bulk | |
Part Status | Obsolete | |
Type | Hybrid | |
Coil Type | Unipolar | |
Voltage - Rated | 24VDC | |
Current Rating (Amps) | 800 mA | |
Steps per Revolution | 200 | |
Step Angle | 1.8° | |
Accuracy | - | |
Torque - Holding (oz-in / mNm) | 4.82 / 34 | |
Size / Dimension | Square - 1.378" x 1.378" (35.00mm x 35.00mm) | |
NEMA Frame Size | 14 | |
Diameter - Shaft | 0.197" (5.00mm) | |
Length - Shaft and Bearing | 0.787" (20.00mm) | |
Mounting Hole Spacing | 1.023" (26.00mm) | |
Termination Style | Wire Leads with Connector | |
Operating Temperature | - | |
Coil Resistance | 2.4 Ohms | |
Features | Round Shaft |
We can supply 14PM-M047U, use the request quote form to request 14PM-M047U pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 14PM-M047U. The price and lead time for 14PM-M047U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 14PM-M047U. We look forward to working with you to establish long-term relations of cooperation.
![]() |
