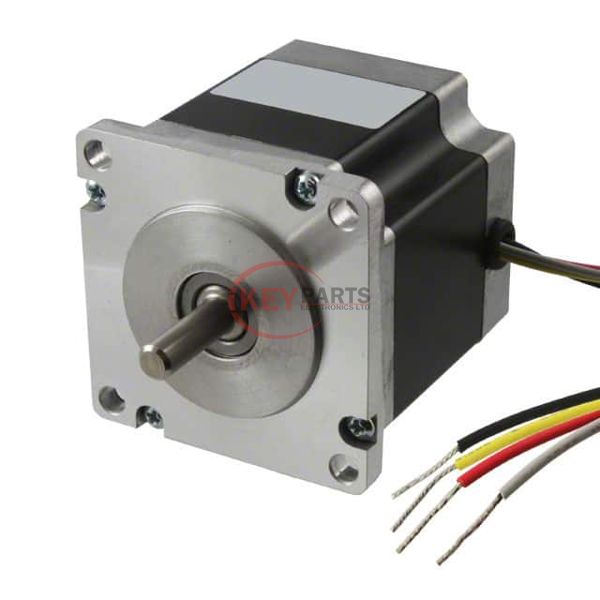

Series | H3 | |
Package | Bulk | |
Part Status | Obsolete | |
Type | Hybrid | |
Coil Type | Bipolar | |
Voltage - Rated | 6.84VDC | |
Current Rating (Amps) | 1 A | |
Steps per Revolution | 200 | |
Step Angle | 1.8° | |
Accuracy | ±5% | |
Torque - Holding (oz-in / mNm) | 180 / 1271 | |
Size / Dimension | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | |
NEMA Frame Size | 23 | |
Diameter - Shaft | 0.250" (6.35mm) | |
Length - Shaft and Bearing | 0.810" (20.57mm) | |
Mounting Hole Spacing | 1.856" (47.14mm) | |
Termination Style | Wire Leads | |
Operating Temperature | -20°C ~ 40°C | |
Coil Resistance | 6.84 Ohms | |
Features | Round Shaft |
We can supply 23H118D10B, use the request quote form to request 23H118D10B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 23H118D10B. The price and lead time for 23H118D10B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 23H118D10B. We look forward to working with you to establish long-term relations of cooperation.
![]() |
