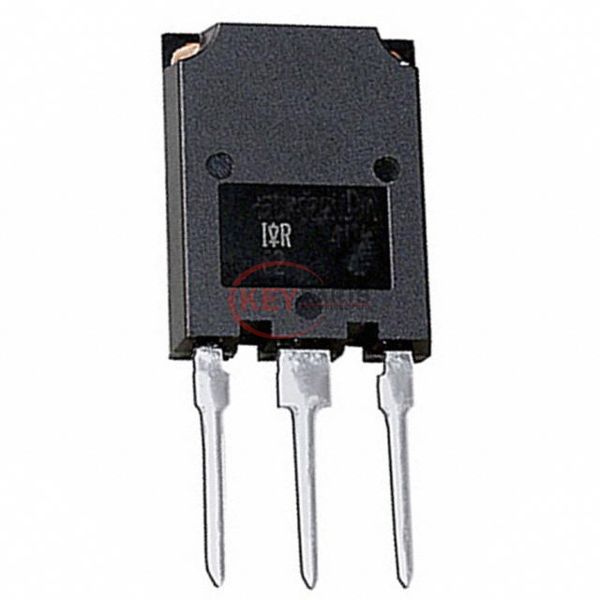

IRG4PSH71U

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRG4PSH71U

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRG4PSH71U
Description
IGBT 1200V 99A 350W SUPER247
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRG4PSH71U PDF
In Stock
407
IRG4PSH71U Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)99 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 70A
Power - Max350 W
Switching Energy4.77mJ (on), 9.54mJ (off)
Input TypeStandard
Gate Charge370 nC
Td (on/off) @ 25°C51ns/280ns
Test Condition960V, 70A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-274AA
Supplier Device PackageSUPER-247™ (TO-274AA)
Request Quote Now
Request Quote Now

We can supply IRG4PSH71U, use the request quote form to request IRG4PSH71U pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4PSH71U. The price and lead time for IRG4PSH71U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4PSH71U. We look forward to working with you to establish long-term relations of cooperation.
