APT40GP60SG

Enlarger

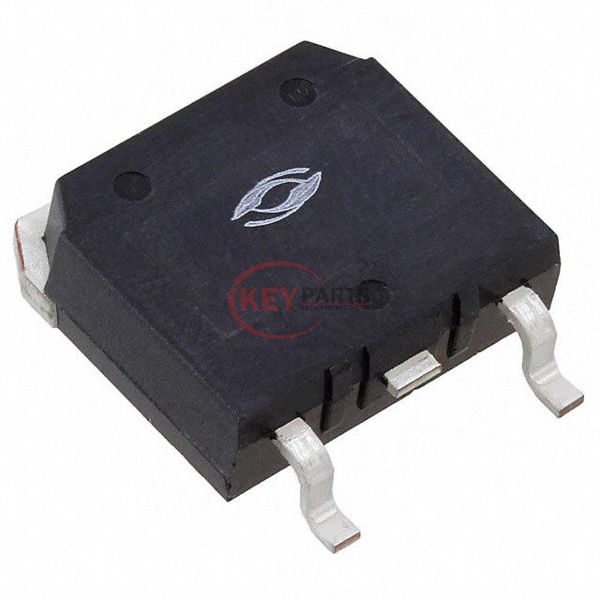

Lmages are for reference only See Product Specitications

Microsemi APT40GP60SG

Manufacturer :
Microsemi
Mfr. Part # :
APT40GP60SG
Description
IGBT 600V 100A 543W D3PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT40GP60SG PDF
APT40GP60SG Tech Specifications
SeriesPOWER MOS 7®
PackageTube
Part StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 40A
Power - Max543 W
Switching Energy385µJ (on), 352µJ (off)
Input TypeStandard
Gate Charge135 nC
Td (on/off) @ 25°C20ns/64ns
Test Condition400V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device PackageD3 [S]
Request Quote Now
Request Quote Now

We can supply APT40GP60SG, use the request quote form to request APT40GP60SG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT40GP60SG. The price and lead time for APT40GP60SG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT40GP60SG. We look forward to working with you to establish long-term relations of cooperation.
