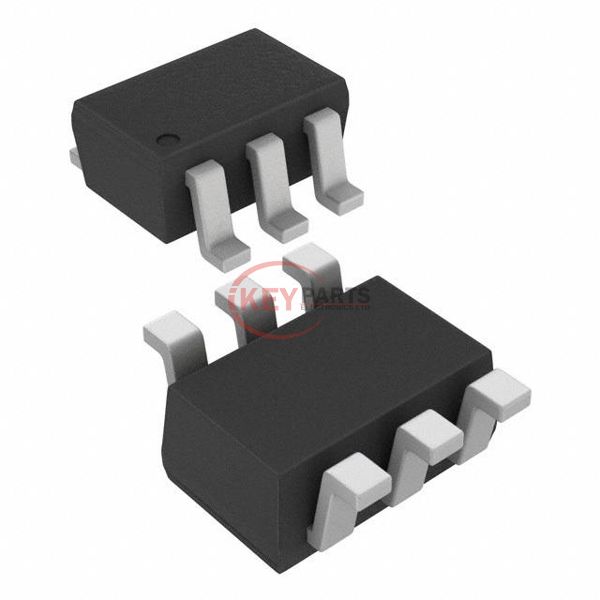

AO7801

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO7801

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO7801
Description
MOSFET 2P-CH 20V SC70-6
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO7801 PDF
In Stock
439
AO7801 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs520mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds140pF @ 10V
Power - Max300mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-70-6
Request Quote Now
Request Quote Now

We can supply AO7801, use the request quote form to request AO7801 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO7801. The price and lead time for AO7801 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO7801. We look forward to working with you to establish long-term relations of cooperation.
