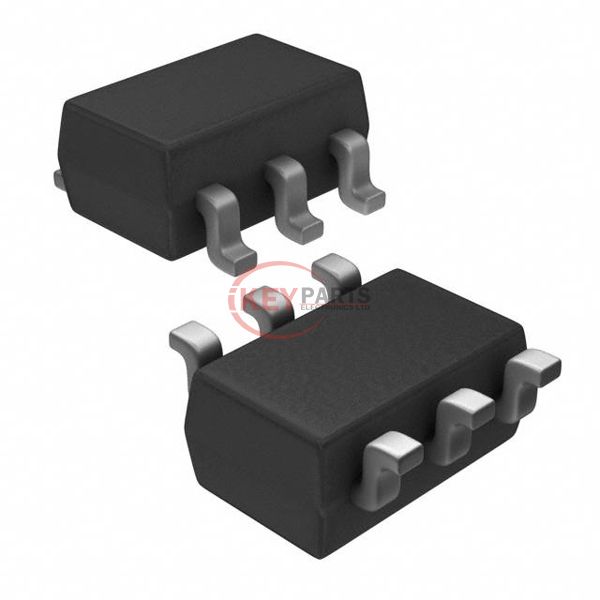

AO6801E

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AO6801E

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AO6801E
Description
MOSFET 2P-CH 30V 2A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AO6801E PDF
In Stock
359
AO6801E Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C2A
Rds On (Max) @ Id, Vgs110mOhm @ 2A, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds305pF @ 15V
Power - Max700mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
Request Quote Now
Request Quote Now

We can supply AO6801E, use the request quote form to request AO6801E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AO6801E. The price and lead time for AO6801E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AO6801E. We look forward to working with you to establish long-term relations of cooperation.
