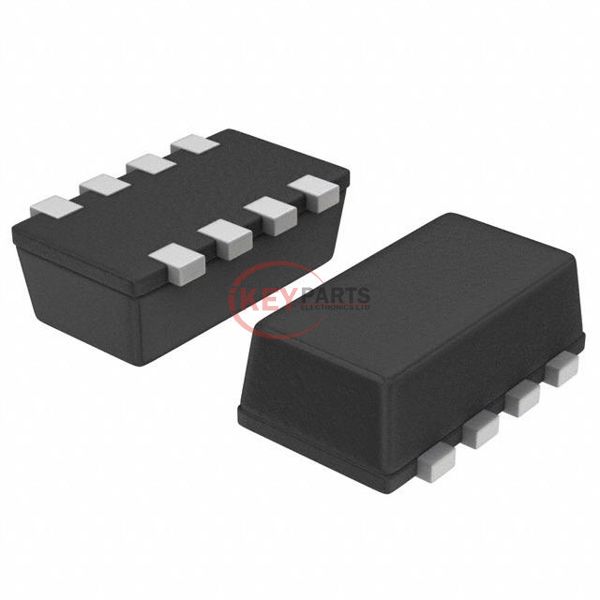

NTHC5513T1

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTHC5513T1

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTHC5513T1
Description
MOSFET N/P-CH 20V CHIPFET
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTHC5513T1 PDF
In Stock
876
NTHC5513T1 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.9A, 2.2A
Rds On (Max) @ Id, Vgs80mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds180pF @ 10V
Power - Max1.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device PackageChipFET™
Request Quote Now
Request Quote Now

We can supply NTHC5513T1, use the request quote form to request NTHC5513T1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTHC5513T1. The price and lead time for NTHC5513T1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTHC5513T1. We look forward to working with you to establish long-term relations of cooperation.
