TMC1320-LA

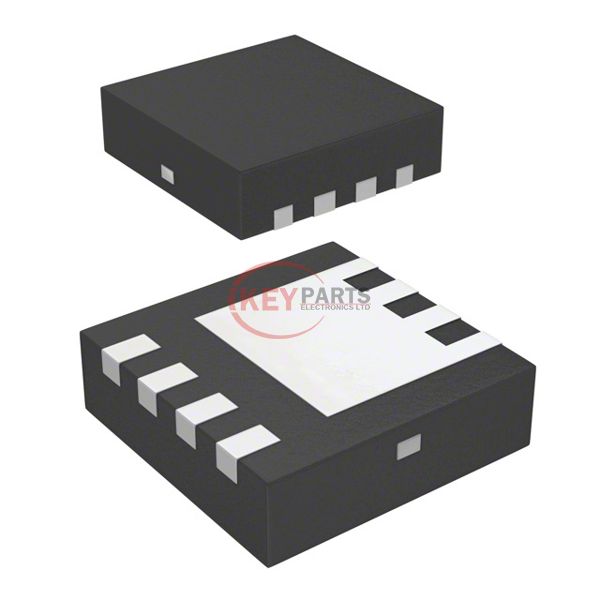

Enlarger

Lmages are for reference only See Product Specitications

TRINAMIC Motion Control GmbH TMC1320-LA

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
TMC1320-LA
Description
MOSFET N/P-CH 30V 8PQFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TMC1320-LA PDF
In Stock
993
TMC1320-LA Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN and P-Channel, Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C7.3A, 5.3A
Rds On (Max) @ Id, Vgs30mOhm @ 4A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds400pF @ 25V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-PQFN (3x3)
Request Quote Now
Request Quote Now

We can supply TMC1320-LA, use the request quote form to request TMC1320-LA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TMC1320-LA. The price and lead time for TMC1320-LA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TMC1320-LA. We look forward to working with you to establish long-term relations of cooperation.
