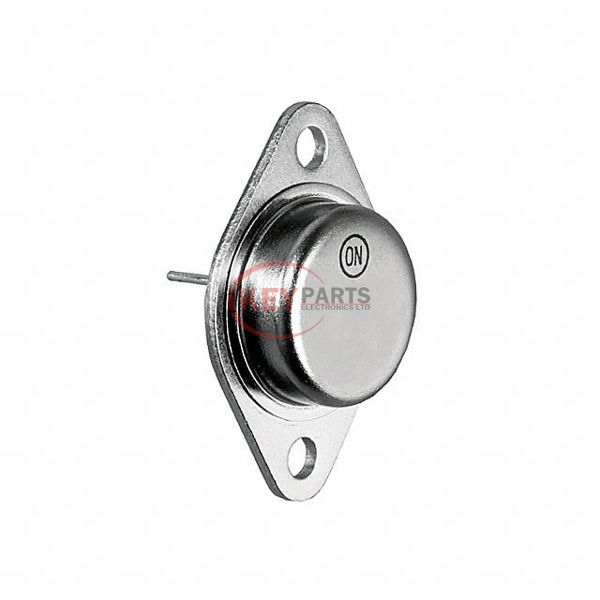

2N3055H

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2N3055H

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2N3055H
Description
TRANS NPN 60V 15A TO-3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N3055H PDF
In Stock
871
2N3055H Tech Specifications
Series-
PackageTray
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)15 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic3V @ 3.3A, 10A
Current - Collector Cutoff (Max)700µA
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 4A, 4V
Power - Max115 W
Frequency - Transition2.5MHz
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-204 (TO-3)
Request Quote Now
Request Quote Now

We can supply 2N3055H, use the request quote form to request 2N3055H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N3055H. The price and lead time for 2N3055H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N3055H. We look forward to working with you to establish long-term relations of cooperation.
