2SA1534ASA

Enlarger

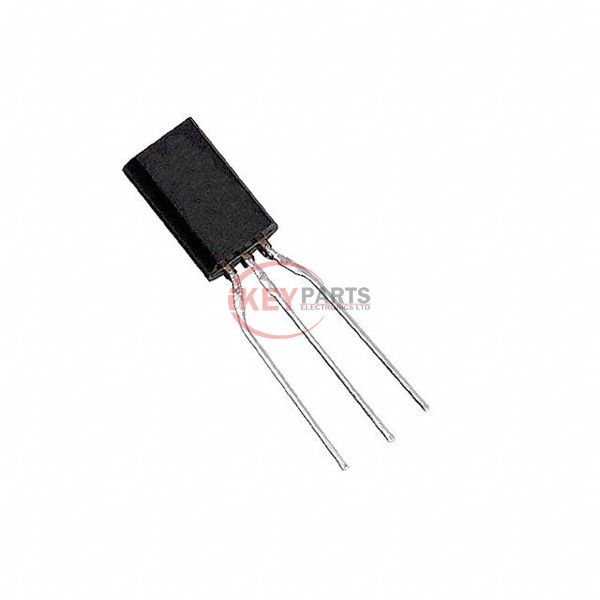

Lmages are for reference only See Product Specitications

Panasonic 2SA1534ASA

Manufacturer :
Panasonic
Mfr. Part # :
2SA1534ASA
Description
TRANS PNP 50V 1A TO-92NL
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SA1534ASA PDF
In Stock
588
2SA1534ASA Tech Specifications
Series-
PackageCut Tape (CT)Tape & Box (TB)
Part StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce170 @ 500mA, 10V
Power - Max1 W
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92NL-A1
Request Quote Now
Request Quote Now

We can supply 2SA1534ASA, use the request quote form to request 2SA1534ASA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SA1534ASA. The price and lead time for 2SA1534ASA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SA1534ASA. We look forward to working with you to establish long-term relations of cooperation.
