PDTC114YEF,115

Enlarger

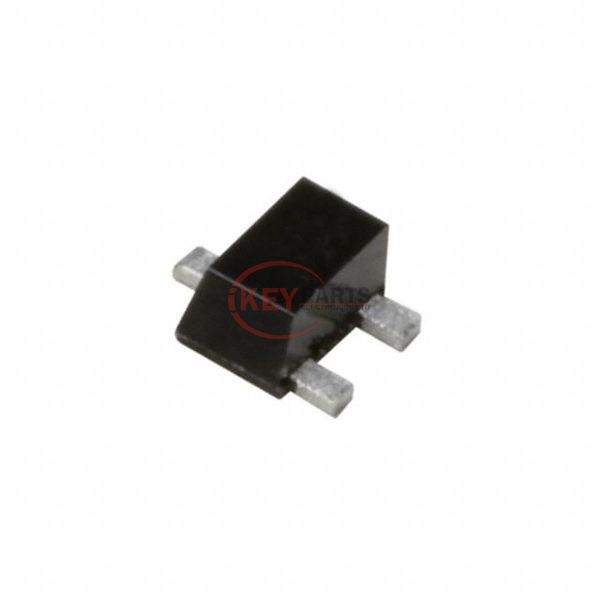

Lmages are for reference only See Product Specitications

NXP Semiconductors PDTC114YEF,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PDTC114YEF,115
Description
TRANS PREBIAS NPN 250MW SC89
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PDTC114YEF,115 PDF
In Stock
872
PDTC114YEF,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 250µA, 5mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition-
Power - Max250 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSC-89
Request Quote Now
Request Quote Now

We can supply PDTC114YEF,115, use the request quote form to request PDTC114YEF,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PDTC114YEF,115. The price and lead time for PDTC114YEF,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PDTC114YEF,115. We look forward to working with you to establish long-term relations of cooperation.
