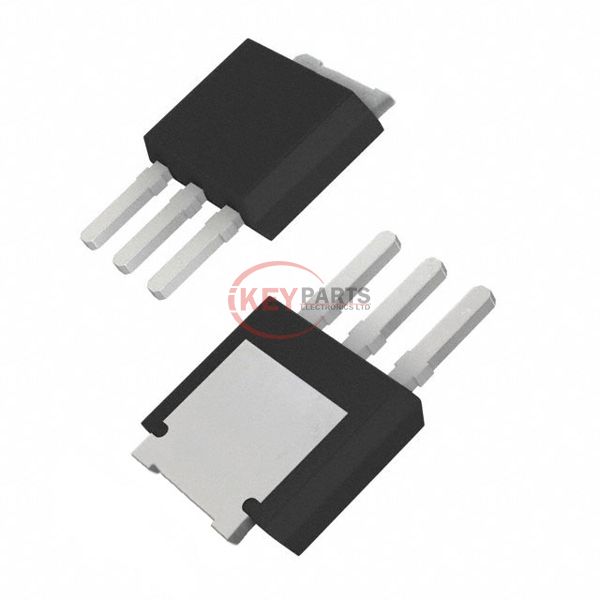

NTD78N03-035

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTD78N03-035

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTD78N03-035
Description
MOSFET N-CH 25V 11.4A/78A IPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTD78N03-035 PDF
NTD78N03-035 Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C11.4A (Ta), 78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6mOhm @ 78A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs35 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2250 pF @ 12 V
FET Feature-
Power Dissipation (Max)1.4W (Ta), 64W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Stub Leads, IPak
Request Quote Now
Request Quote Now

We can supply NTD78N03-035, use the request quote form to request NTD78N03-035 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTD78N03-035. The price and lead time for NTD78N03-035 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTD78N03-035. We look forward to working with you to establish long-term relations of cooperation.
