DMP21D5UFD-7

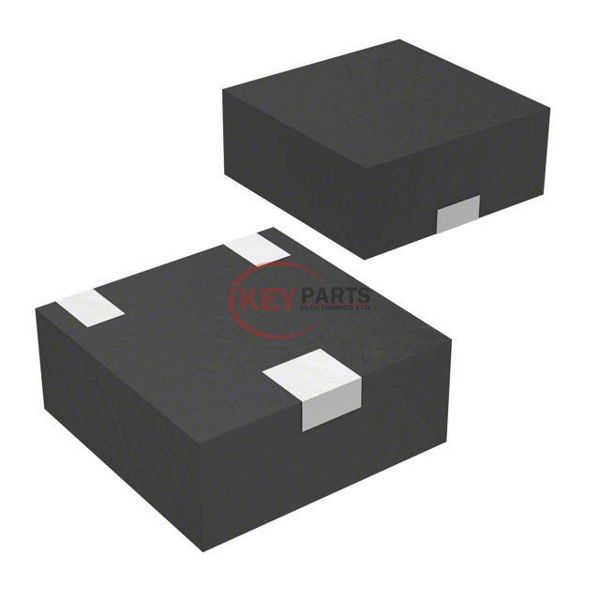

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMP21D5UFD-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMP21D5UFD-7
Description
MOSFET P-CH 20V 600MA 3DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMP21D5UFD-7 PDF
DMP21D5UFD-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.2V, 4.5V
Rds On (Max) @ Id, Vgs1Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs800 nC @ 8 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds46.1 pF @ 10 V
FET Feature-
Power Dissipation (Max)400mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX1-DFN1212-3
Package / Case3-UDFN
Request Quote Now
Request Quote Now

We can supply DMP21D5UFD-7, use the request quote form to request DMP21D5UFD-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMP21D5UFD-7. The price and lead time for DMP21D5UFD-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMP21D5UFD-7. We look forward to working with you to establish long-term relations of cooperation.
