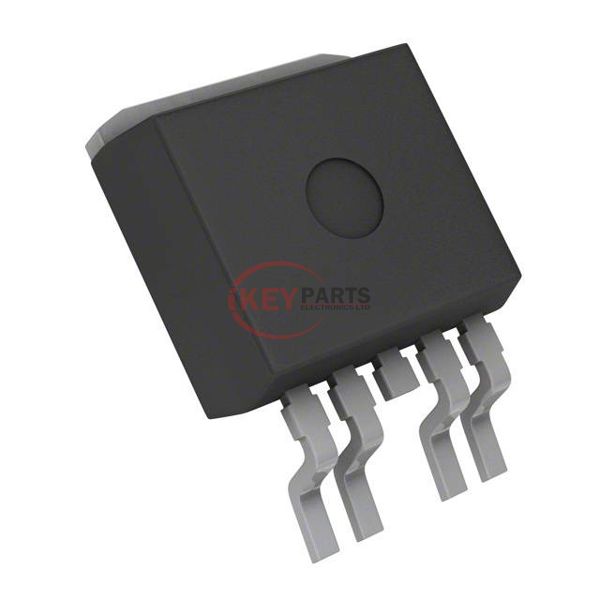

BTS247Z E3062A

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BTS247Z E3062A

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BTS247Z E3062A
Description
MOSFET N-CH 55V 33A TO263-5
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BTS247Z E3062A PDF
In Stock
359
BTS247Z E3062A Tech Specifications
SeriesTEMPFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs18mOhm @ 12A, 10V
Vgs(th) (Max) @ Id2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs90 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1730 pF @ 25 V
FET FeatureTemperature Sensing Diode
Power Dissipation (Max)120W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-5-2
Package / CaseTO-263-5, D²Pak (4 Leads + Tab), TO-263BB
Request Quote Now
Request Quote Now

We can supply BTS247Z E3062A, use the request quote form to request BTS247Z E3062A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BTS247Z E3062A. The price and lead time for BTS247Z E3062A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BTS247Z E3062A. We look forward to working with you to establish long-term relations of cooperation.
