AON4705L

Enlarger

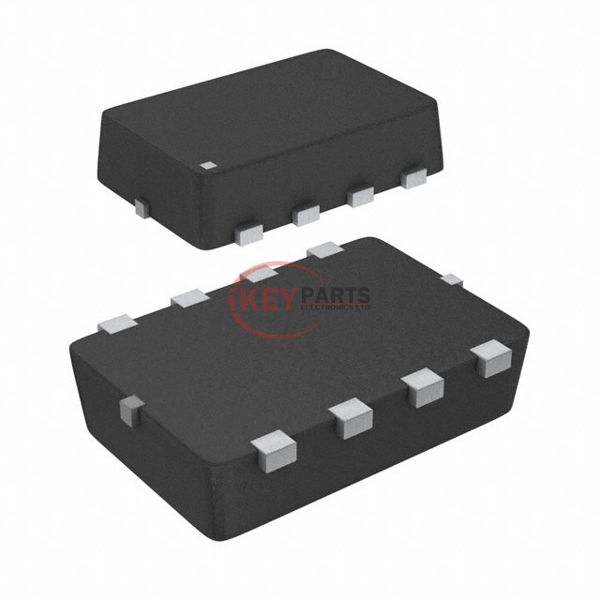

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON4705L

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON4705L
Description
MOSFET P-CH 20V 4A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON4705L PDF
In Stock
956
AON4705L Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs65mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds745 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (3x2)
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply AON4705L, use the request quote form to request AON4705L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON4705L. The price and lead time for AON4705L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON4705L. We look forward to working with you to establish long-term relations of cooperation.
