SI1305EDL-T1-GE3

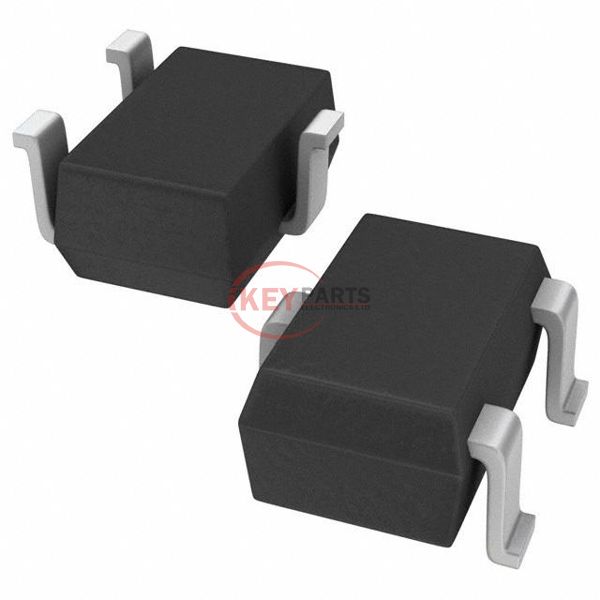

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SI1305EDL-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SI1305EDL-T1-GE3
Description
MOSFET P-CH 8V 860MA SC70-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SI1305EDL-T1-GE3 PDF
In Stock
998
SI1305EDL-T1-GE3 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs280mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id450mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs4 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)290mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-3
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply SI1305EDL-T1-GE3, use the request quote form to request SI1305EDL-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SI1305EDL-T1-GE3. The price and lead time for SI1305EDL-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SI1305EDL-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
