PH16030L,115

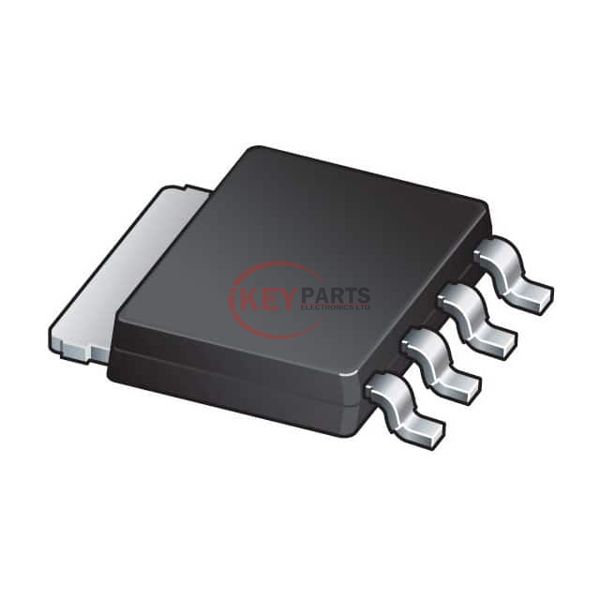

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PH16030L,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PH16030L,115
Description
MOSFET N-CH 30V 38A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PH16030L,115 PDF
In Stock
727
PH16030L,115 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs16.9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs8.2 nC @ 4.5 V
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds680 pF @ 12 V
FET Feature-
Power Dissipation (Max)41.6W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSC-100, SOT-669
Request Quote Now
Request Quote Now

We can supply PH16030L,115, use the request quote form to request PH16030L,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PH16030L,115. The price and lead time for PH16030L,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PH16030L,115. We look forward to working with you to establish long-term relations of cooperation.
