FDMC7672_F125

Enlarger

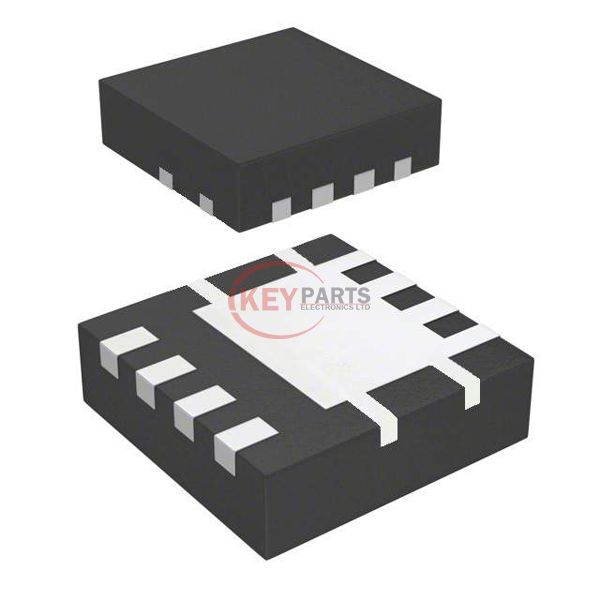

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMC7672_F125

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMC7672_F125
Description
MOSFET N-CH 30V 16.9A/20A 8MLP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMC7672_F125 PDF
In Stock
974
FDMC7672_F125 Tech Specifications
SeriesPowerTrench®, SyncFET™
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C16.9A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.7mOhm @ 16.9A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs57 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3890 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 33W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
Request Quote Now
Request Quote Now

We can supply FDMC7672_F125, use the request quote form to request FDMC7672_F125 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMC7672_F125. The price and lead time for FDMC7672_F125 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMC7672_F125. We look forward to working with you to establish long-term relations of cooperation.
