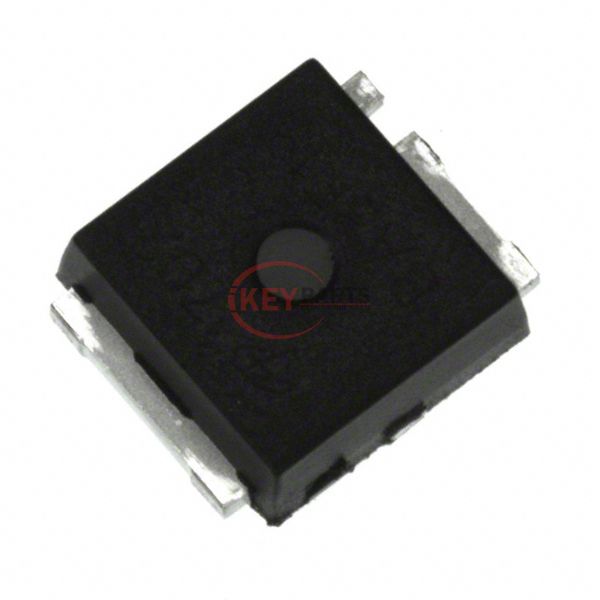

AOL1702

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOL1702

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOL1702
Description
MOSFET N-CH 30V 14A/70A ULTRASO8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOL1702 PDF
In Stock
713
AOL1702 Tech Specifications
SeriesSRFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs77 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds5000 pF @ 15 V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)2.1W (Ta), 58W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUltraSO-8™
Package / Case3-PowerSMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply AOL1702, use the request quote form to request AOL1702 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOL1702. The price and lead time for AOL1702 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOL1702. We look forward to working with you to establish long-term relations of cooperation.
