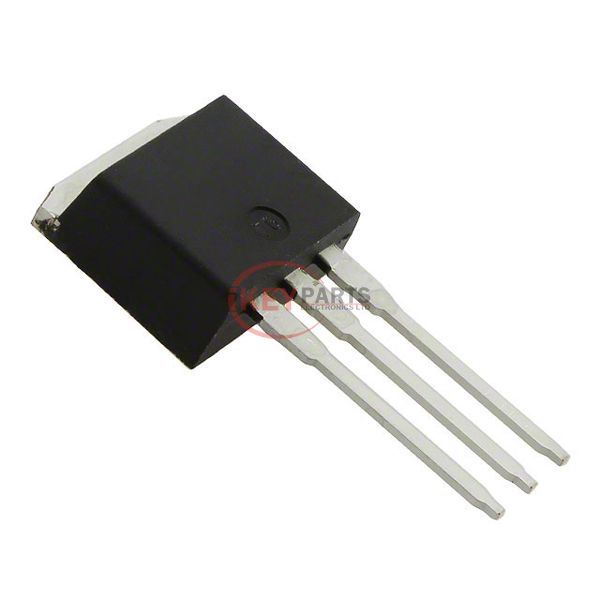

IRL540L

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRL540L

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRL540L
Description
MOSFET N-CH 100V 28A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL540L PDF
IRL540L Tech Specifications
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 5V
Rds On (Max) @ Id, Vgs77mOhm @ 17A, 5V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs64 nC @ 5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 25 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeThrough Hole
Supplier Device PackageTO-262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRL540L, use the request quote form to request IRL540L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL540L. The price and lead time for IRL540L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL540L. We look forward to working with you to establish long-term relations of cooperation.
