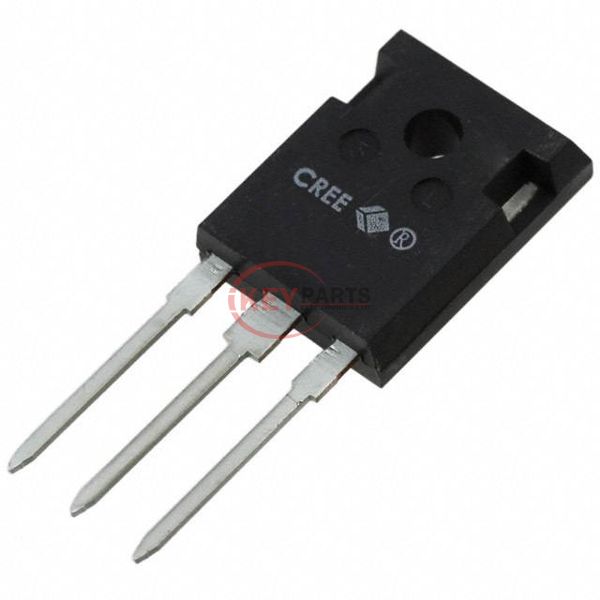

CMF20120D

Enlarger

Lmages are for reference only See Product Specitications

Wolfspeed - a Cree company CMF20120D

Manufacturer :
Wolfspeed - a Cree company
Mfr. Part # :
CMF20120D
Description
SICFET N-CH 1200V 42A TO247-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CMF20120D PDF
CMF20120D Tech Specifications
SeriesZ-FET™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs90.8 nC @ 20 V
Vgs (Max)+25V, -5V
Input Capacitance (Ciss) (Max) @ Vds1915 pF @ 800 V
FET Feature-
Power Dissipation (Max)215W (Tc)
Operating Temperature-55°C ~ 135°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply CMF20120D, use the request quote form to request CMF20120D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMF20120D. The price and lead time for CMF20120D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMF20120D. We look forward to working with you to establish long-term relations of cooperation.
