NTLUS3A40PZCTBG

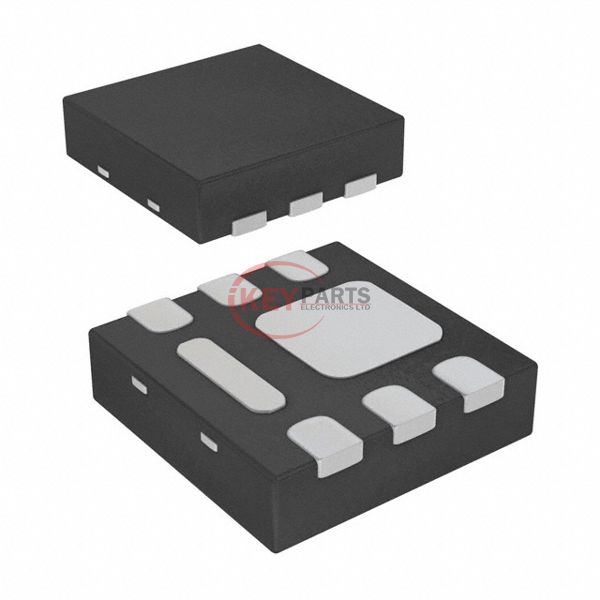

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLUS3A40PZCTBG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLUS3A40PZCTBG
Description
MOSFET P-CH 20V 4A 6UDFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLUS3A40PZCTBG PDF
NTLUS3A40PZCTBG Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs29mOhm @ 6.4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2600 pF @ 15 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (2x2)
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply NTLUS3A40PZCTBG, use the request quote form to request NTLUS3A40PZCTBG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLUS3A40PZCTBG. The price and lead time for NTLUS3A40PZCTBG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLUS3A40PZCTBG. We look forward to working with you to establish long-term relations of cooperation.
