STS9P3LLH6

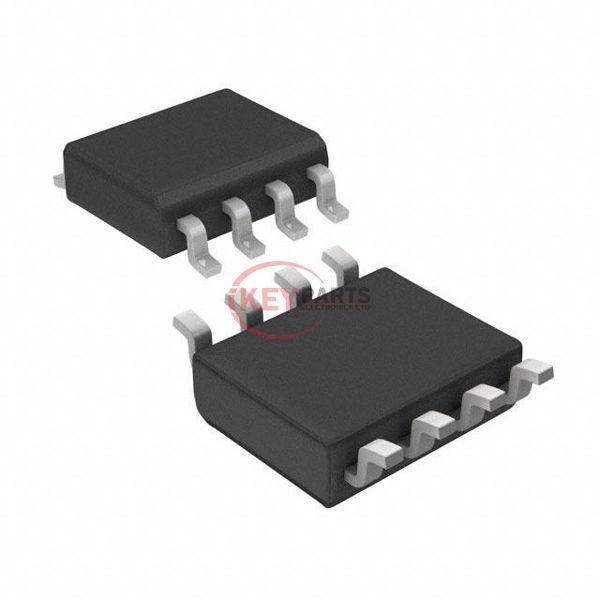

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STS9P3LLH6

Manufacturer :
STMicroelectronics
Mfr. Part # :
STS9P3LLH6
Description
MOSFET P-CH 30V 9A 8SO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STS9P3LLH6 PDF
In Stock
589
STS9P3LLH6 Tech Specifications
SeriesSTripFET™ H6
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs15mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2615 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SO
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply STS9P3LLH6, use the request quote form to request STS9P3LLH6 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STS9P3LLH6. The price and lead time for STS9P3LLH6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STS9P3LLH6. We look forward to working with you to establish long-term relations of cooperation.
