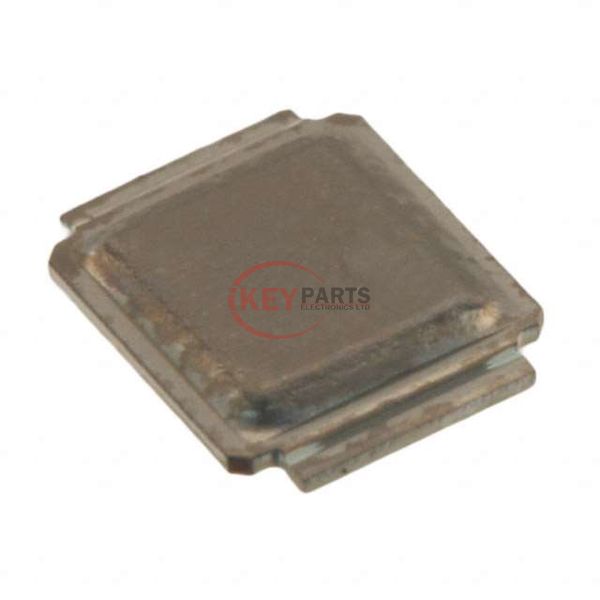

BSB024N03LX G

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSB024N03LX G

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSB024N03LX G
Description
MOSFET N-CH 30V 27A/145A 2WDSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSB024N03LX G PDF
BSB024N03LX G Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C27A (Ta), 145A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4900 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 78W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMG-WDSON-2, CanPAK M™
Package / Case3-WDSON
Request Quote Now
Request Quote Now

We can supply BSB024N03LX G, use the request quote form to request BSB024N03LX G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSB024N03LX G. The price and lead time for BSB024N03LX G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSB024N03LX G. We look forward to working with you to establish long-term relations of cooperation.
