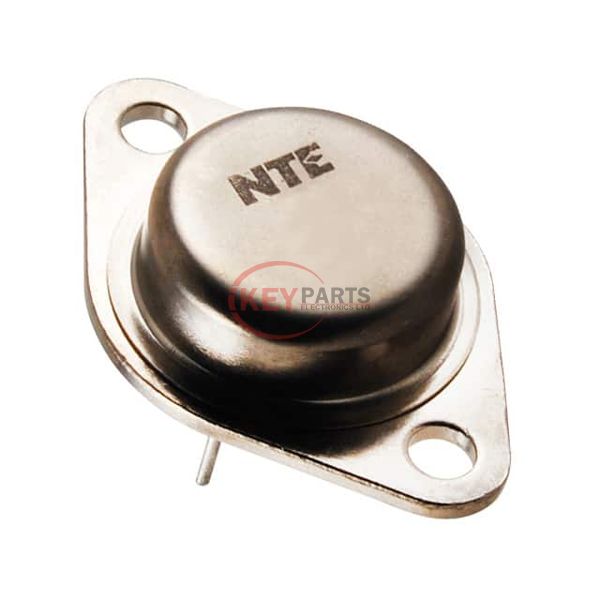

2N6770

Enlarger

Lmages are for reference only See Product Specitications

Microsemi 2N6770

Manufacturer :
Microsemi
Mfr. Part # :
2N6770
Description
MOSFET N-CH 500V 12A TO3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N6770 PDF
In Stock
514
2N6770 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs500mOhm @ 12A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)4W (Ta), 150W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3
Package / CaseTO-204AE
Request Quote Now
Request Quote Now

We can supply 2N6770, use the request quote form to request 2N6770 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N6770. The price and lead time for 2N6770 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N6770. We look forward to working with you to establish long-term relations of cooperation.
