IRF6706S2TRPBF

Enlarger

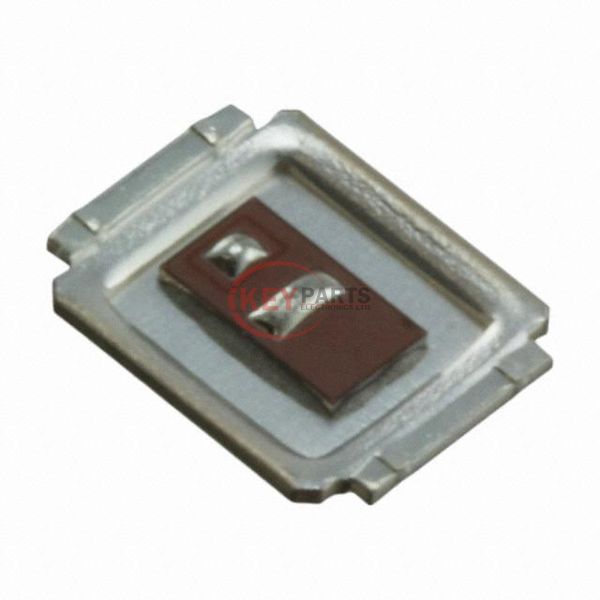

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRF6706S2TRPBF

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRF6706S2TRPBF
Description
MOSFET N-CH 25V 17A DIRECTFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF6706S2TRPBF PDF
In Stock
229
IRF6706S2TRPBF Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C17A (Ta), 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.8mOhm @ 17A, 10V
Vgs(th) (Max) @ Id2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1810 pF @ 13 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 26W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET S1
Package / CaseDirectFET™ Isometric S1
Request Quote Now
Request Quote Now

We can supply IRF6706S2TRPBF, use the request quote form to request IRF6706S2TRPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF6706S2TRPBF. The price and lead time for IRF6706S2TRPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF6706S2TRPBF. We look forward to working with you to establish long-term relations of cooperation.
