JANTX2N6804

Enlarger

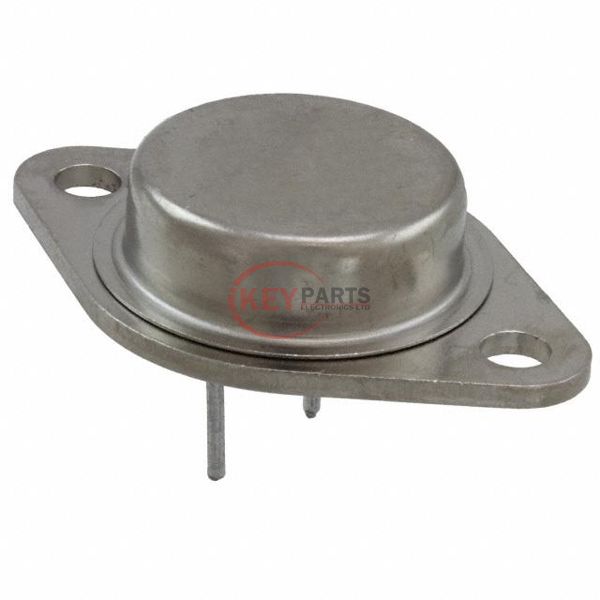

Lmages are for reference only See Product Specitications

Microsemi JANTX2N6804

Manufacturer :
Microsemi
Mfr. Part # :
JANTX2N6804
Description
MOSFET P-CH 100V 11A TO204AA
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JANTX2N6804 PDF
In Stock
752
JANTX2N6804 Tech Specifications
SeriesMilitary, MIL-PRF-19500/562
PackageBulk
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs360mOhm @ 11A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)4W (Ta), 75W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-204AA
Package / CaseTO-204AA, TO-3
Request Quote Now
Request Quote Now

We can supply JANTX2N6804, use the request quote form to request JANTX2N6804 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JANTX2N6804. The price and lead time for JANTX2N6804 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JANTX2N6804. We look forward to working with you to establish long-term relations of cooperation.
