BSA223SP

Enlarger

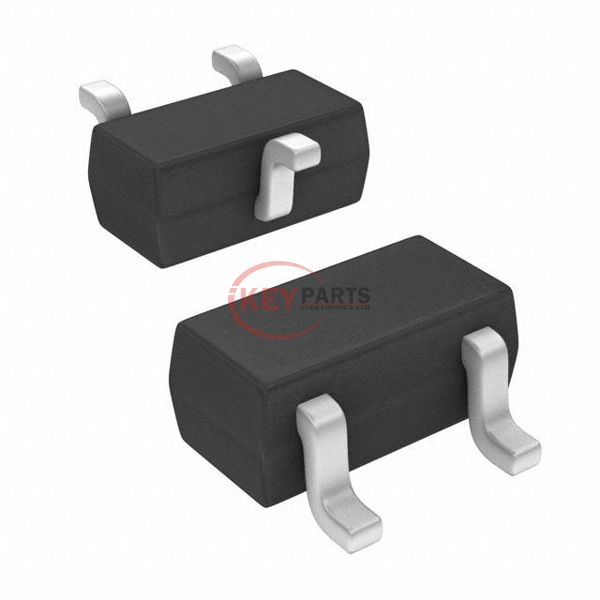

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSA223SP

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSA223SP
Description
MOSFET P-CH 20V 390MA SC75
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSA223SP PDF
In Stock
418
BSA223SP Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C390mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs1.2Ohm @ 390mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 1.5µA
Gate Charge (Qg) (Max) @ Vgs0.62 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds56 pF @ 15 V
FET Feature-
Power Dissipation (Max)250mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SC-75
Package / CaseSC-75, SOT-416
Request Quote Now
Request Quote Now

We can supply BSA223SP, use the request quote form to request BSA223SP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSA223SP. The price and lead time for BSA223SP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSA223SP. We look forward to working with you to establish long-term relations of cooperation.
