SSM6J409TU(TE85L,F

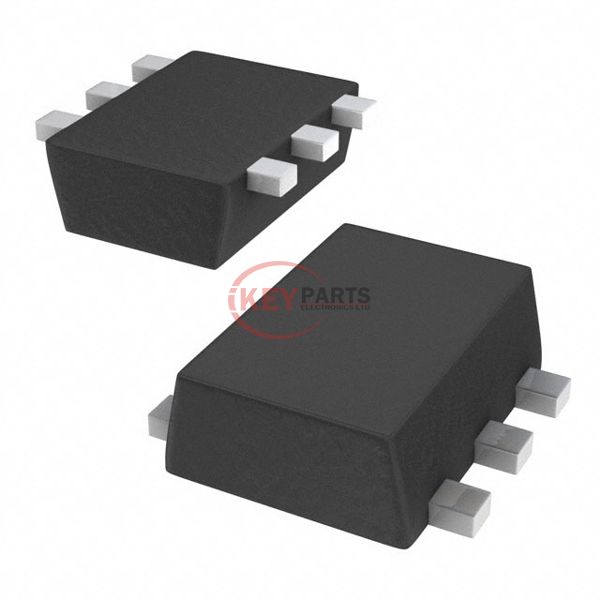

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation SSM6J409TU(TE85L,F

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
SSM6J409TU(TE85L,F
Description
MOSFET P-CH 20V 9.5A UF6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SSM6J409TU(TE85L,F PDF
In Stock
413
SSM6J409TU(TE85L,F Tech Specifications
SeriesU-MOSV
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C9.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs22.1mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1100 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUF6
Package / Case6-SMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply SSM6J409TU(TE85L,F, use the request quote form to request SSM6J409TU(TE85L,F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SSM6J409TU(TE85L,F. The price and lead time for SSM6J409TU(TE85L,F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SSM6J409TU(TE85L,F. We look forward to working with you to establish long-term relations of cooperation.
