MTM232230L

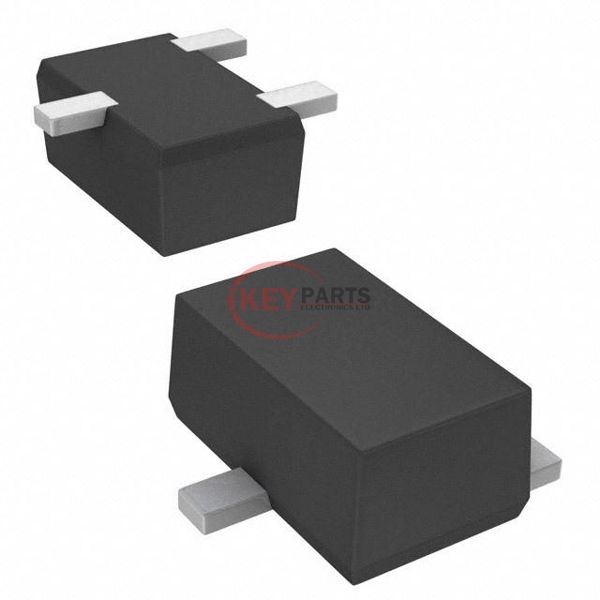

Enlarger

Lmages are for reference only See Product Specitications

Panasonic MTM232230L

Manufacturer :
Panasonic
Mfr. Part # :
MTM232230L
Description
MOSFET N-CH 20V 4.5A SMINI3-G1
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MTM232230L PDF
In Stock
444
MTM232230L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs28mOhm @ 1A, 4V
Vgs(th) (Max) @ Id1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1200 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSMini3-G1
Package / CaseSC-70, SOT-323
Request Quote Now
Request Quote Now

We can supply MTM232230L, use the request quote form to request MTM232230L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MTM232230L. The price and lead time for MTM232230L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MTM232230L. We look forward to working with you to establish long-term relations of cooperation.
