CMPDM203NH TR

Enlarger

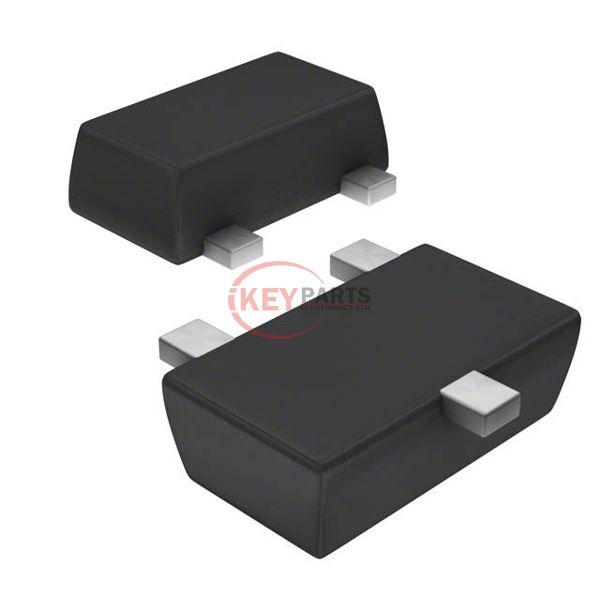

Lmages are for reference only See Product Specitications

Central Semiconductor CMPDM203NH TR

Manufacturer :
Central Semiconductor
Mfr. Part # :
CMPDM203NH TR
Description
MOSFET N-CH 20V 3.2A SOT-23F
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CMPDM203NH TR PDF
In Stock
516
CMPDM203NH TR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs50mOhm @ 1.6A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10 nC @ 4.5 V
Vgs (Max)12V
Input Capacitance (Ciss) (Max) @ Vds395 pF @ 10 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23F
Package / CaseSOT-23-3 Flat Leads
Request Quote Now
Request Quote Now

We can supply CMPDM203NH TR, use the request quote form to request CMPDM203NH TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMPDM203NH TR. The price and lead time for CMPDM203NH TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMPDM203NH TR. We look forward to working with you to establish long-term relations of cooperation.
