ZXMN3A03E6TC

Enlarger

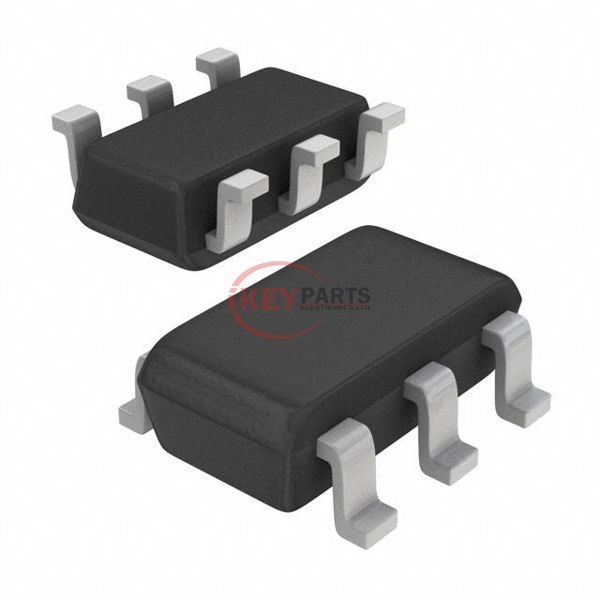

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXMN3A03E6TC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXMN3A03E6TC
Description
MOSFET N-CH 30V 3.7A SOT23-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXMN3A03E6TC PDF
In Stock
712
ZXMN3A03E6TC Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs50mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds600 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-6
Package / CaseSOT-23-6
Request Quote Now
Request Quote Now

We can supply ZXMN3A03E6TC, use the request quote form to request ZXMN3A03E6TC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXMN3A03E6TC. The price and lead time for ZXMN3A03E6TC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXMN3A03E6TC. We look forward to working with you to establish long-term relations of cooperation.
