STK30N2LLH5

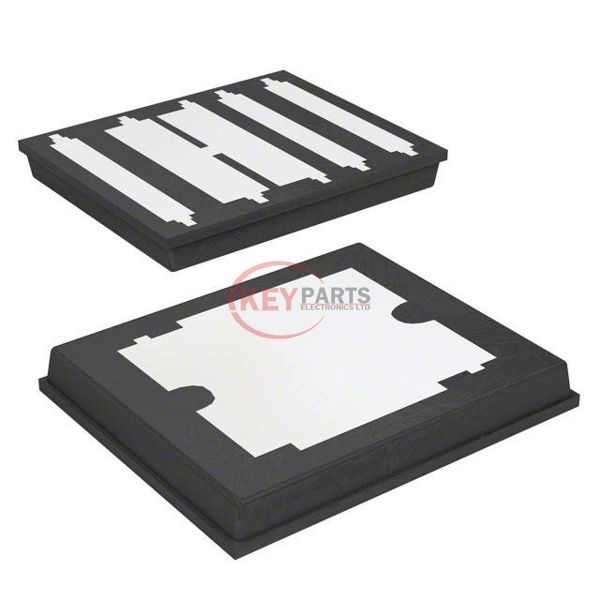

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STK30N2LLH5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STK30N2LLH5
Description
MOSFET N-CH 25V 30A POLARPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STK30N2LLH5 PDF
In Stock
272
STK30N2LLH5 Tech Specifications
SeriesSTripFET™ V
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.9mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2290 pF @ 25 V
FET Feature-
Power Dissipation (Max)5.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePolarPak®
Package / CasePolarPak®
Request Quote Now
Request Quote Now

We can supply STK30N2LLH5, use the request quote form to request STK30N2LLH5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STK30N2LLH5. The price and lead time for STK30N2LLH5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STK30N2LLH5. We look forward to working with you to establish long-term relations of cooperation.
