CSD16325Q5C

Enlarger

Lmages are for reference only See Product Specitications

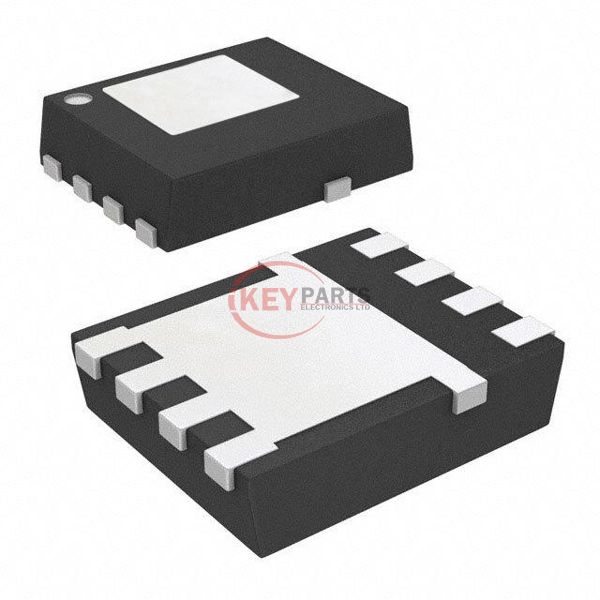

Texas Instruments CSD16325Q5C

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD16325Q5C
Description
MOSFET N-CH 25V 33A/100A 8VSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD16325Q5C PDF
In Stock
283
CSD16325Q5C Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C33A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)3V, 8V
Rds On (Max) @ Id, Vgs2mOhm @ 30A, 8V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds4000 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)3.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (5x6)
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply CSD16325Q5C, use the request quote form to request CSD16325Q5C pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD16325Q5C. The price and lead time for CSD16325Q5C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD16325Q5C. We look forward to working with you to establish long-term relations of cooperation.
