IRF6609

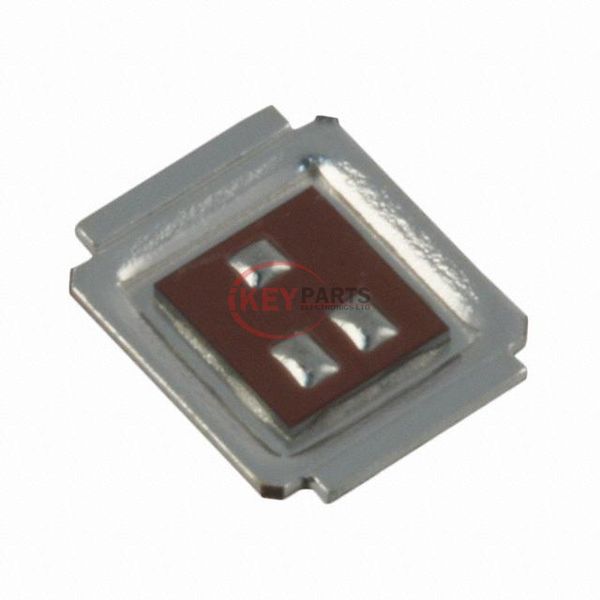

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRF6609

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRF6609
Description
MOSFET N-CH 20V 31A DIRECTFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF6609 PDF
In Stock
349
IRF6609 Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C31A (Ta), 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2mOhm @ 31A, 10V
Vgs(th) (Max) @ Id2.45V @ 250µA
Gate Charge (Qg) (Max) @ Vgs69 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6290 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 89W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MT
Package / CaseDirectFET™ Isometric MT
Request Quote Now
Request Quote Now

We can supply IRF6609, use the request quote form to request IRF6609 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF6609. The price and lead time for IRF6609 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF6609. We look forward to working with you to establish long-term relations of cooperation.
