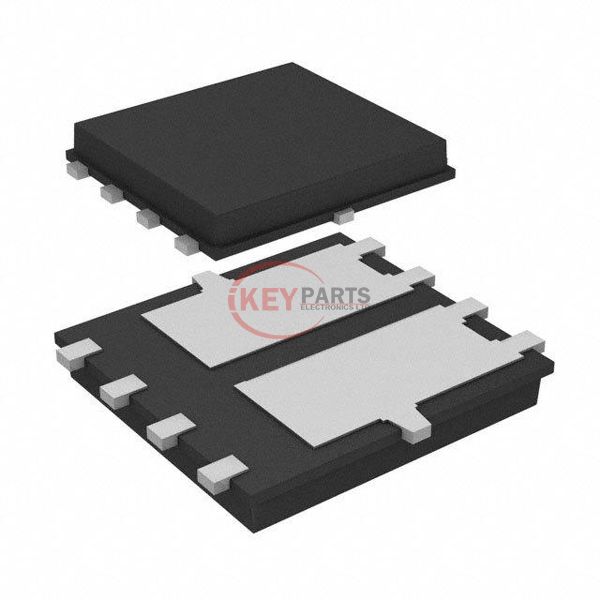

AON6504_002

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON6504_002

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON6504_002
Description
MOSFET N-CH 30V 51A/85A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON6504_002 PDF
In Stock
622
AON6504_002 Tech Specifications
SeriesAlphaMOS
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C51A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.1mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs60 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2719 pF @ 15 V
FET Feature-
Power Dissipation (Max)7.3W (Ta), 83W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6)
Package / Case8-PowerSMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply AON6504_002, use the request quote form to request AON6504_002 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON6504_002. The price and lead time for AON6504_002 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON6504_002. We look forward to working with you to establish long-term relations of cooperation.
