BSO4420

Enlarger

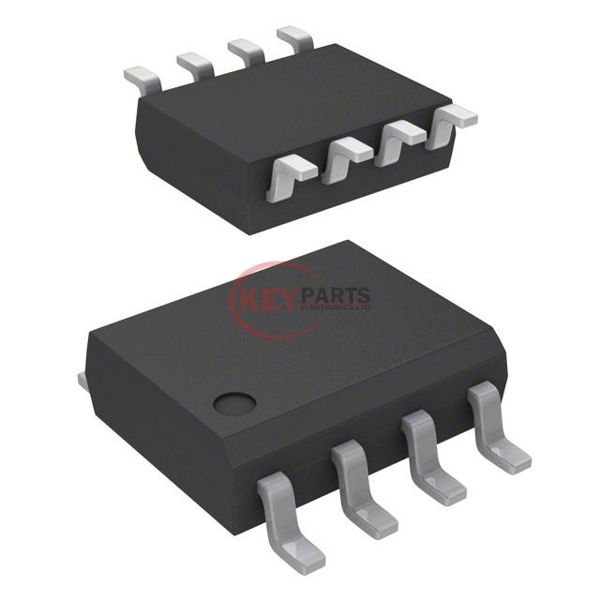

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSO4420

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSO4420
Description
MOSFET N-CH 30V 13A 8SO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSO4420 PDF
In Stock
554
BSO4420 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C13A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id2V @ 80µA
Gate Charge (Qg) (Max) @ Vgs33.7 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2213 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SO
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply BSO4420, use the request quote form to request BSO4420 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSO4420. The price and lead time for BSO4420 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSO4420. We look forward to working with you to establish long-term relations of cooperation.
