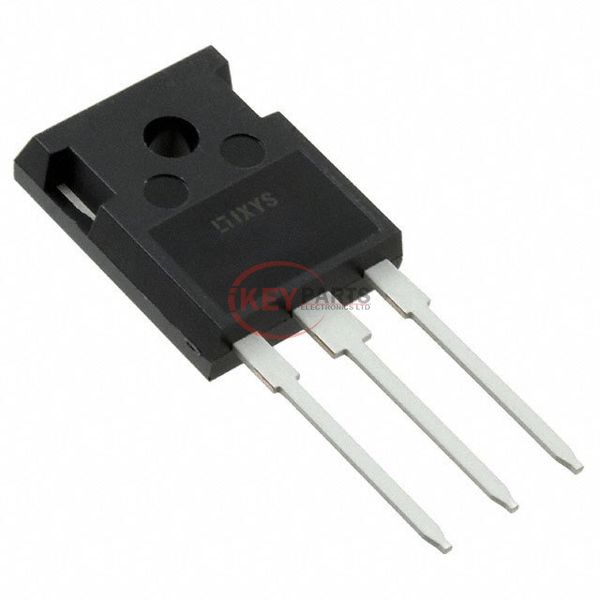

IXFH9N80Q

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXFH9N80Q

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXFH9N80Q
Description
MOSFET N-CH 800V 9A TO247AD
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXFH9N80Q PDF
In Stock
820
IXFH9N80Q Tech Specifications
SeriesHiPerFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.1Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs56 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 25 V
FET Feature-
Power Dissipation (Max)180W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AD (IXFH)
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IXFH9N80Q, use the request quote form to request IXFH9N80Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXFH9N80Q. The price and lead time for IXFH9N80Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXFH9N80Q. We look forward to working with you to establish long-term relations of cooperation.
