IRF540L

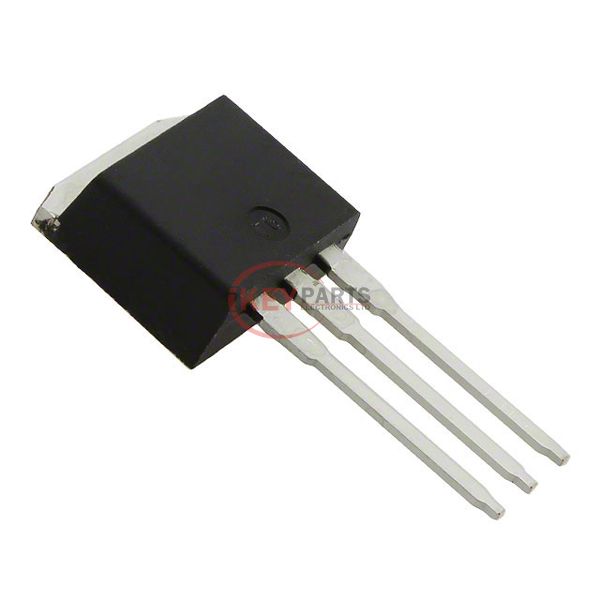

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRF540L

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRF540L
Description
MOSFET N-CH 100V 28A TO262
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF540L PDF
In Stock
947
IRF540L Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs77mOhm @ 17A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1700 pF @ 25 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-262
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRF540L, use the request quote form to request IRF540L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF540L. The price and lead time for IRF540L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF540L. We look forward to working with you to establish long-term relations of cooperation.
