MTM861240LBF

Enlarger

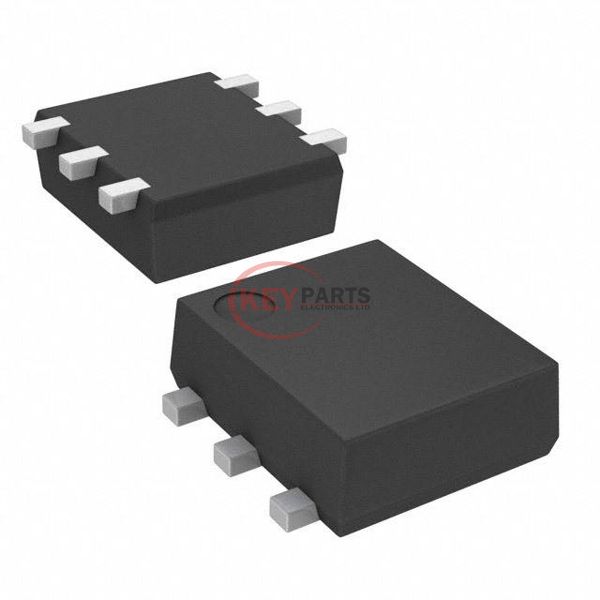

Lmages are for reference only See Product Specitications

Panasonic MTM861240LBF

Manufacturer :
Panasonic
Mfr. Part # :
MTM861240LBF
Description
MOSFET P-CH 20V 2A WSSMINI6-F1
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MTM861240LBF PDF
In Stock
797
MTM861240LBF Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4V
Rds On (Max) @ Id, Vgs130mOhm @ 1A, 4V
Vgs(th) (Max) @ Id1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds400 pF @ 10 V
FET Feature-
Power Dissipation (Max)540mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageWSSMini6-F1
Package / Case6-SMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply MTM861240LBF, use the request quote form to request MTM861240LBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MTM861240LBF. The price and lead time for MTM861240LBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MTM861240LBF. We look forward to working with you to establish long-term relations of cooperation.
