BSO203SPNTMA1

Enlarger

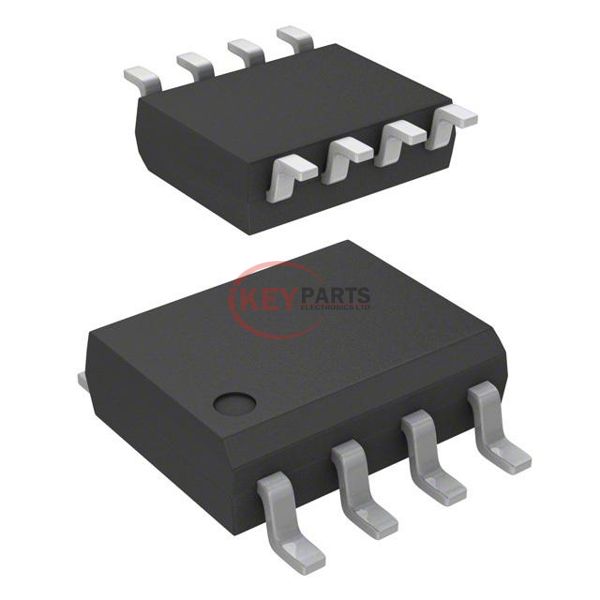

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSO203SPNTMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSO203SPNTMA1
Description
MOSFET P-CH 20V 9A 8DSO
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSO203SPNTMA1 PDF
In Stock
414
BSO203SPNTMA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs21mOhm @ 9A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 100µA
Gate Charge (Qg) (Max) @ Vgs50.4 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds2265 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.35W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageP-DSO-8
Package / Case8-SOIC (0.154", 3.90mm Width)
Request Quote Now
Request Quote Now

We can supply BSO203SPNTMA1, use the request quote form to request BSO203SPNTMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSO203SPNTMA1. The price and lead time for BSO203SPNTMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSO203SPNTMA1. We look forward to working with you to establish long-term relations of cooperation.
