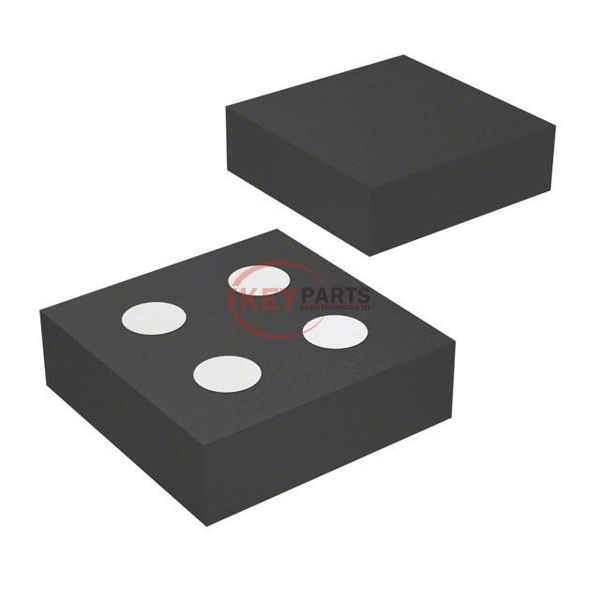

AOC2415

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOC2415

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOC2415
Description
MOSFET P-CH 20V 3.5A 4ALPHADFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOC2415 PDF
In Stock
312
AOC2415 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs33mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1685 pF @ 10 V
FET Feature-
Power Dissipation (Max)550mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-AlphaDFN (1.57x1.57)
Package / Case4-SMD, No Lead
Request Quote Now
Request Quote Now

We can supply AOC2415, use the request quote form to request AOC2415 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOC2415. The price and lead time for AOC2415 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOC2415. We look forward to working with you to establish long-term relations of cooperation.
