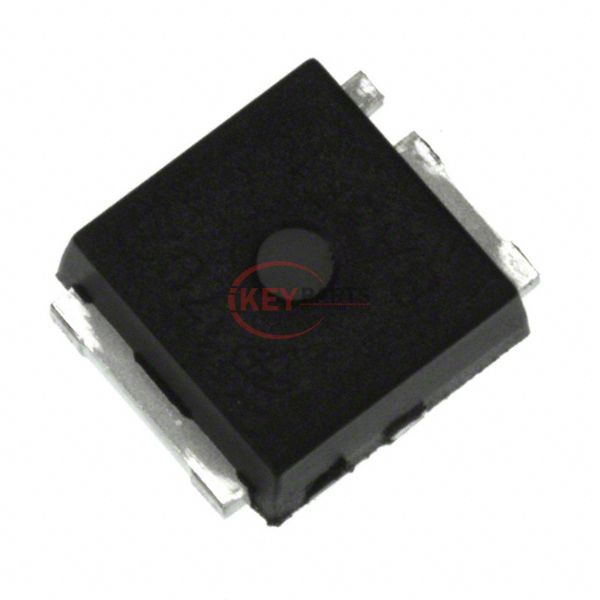

AOL1424

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOL1424

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOL1424
Description
MOSFET N-CH 30V 15A/70A ULTRASO8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOL1424 PDF
In Stock
279
AOL1424 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C15A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs48 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2170 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.2W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUltraSO-8™
Package / Case3-PowerSMD, Flat Leads
Request Quote Now
Request Quote Now

We can supply AOL1424, use the request quote form to request AOL1424 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOL1424. The price and lead time for AOL1424 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOL1424. We look forward to working with you to establish long-term relations of cooperation.
